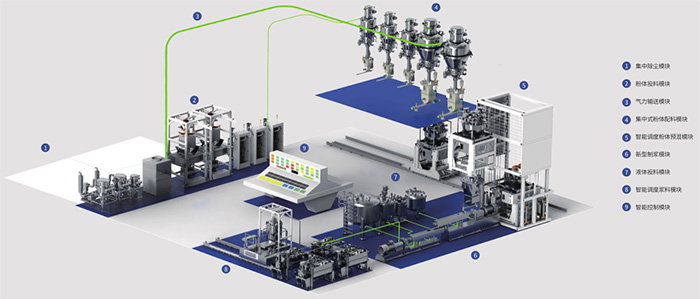

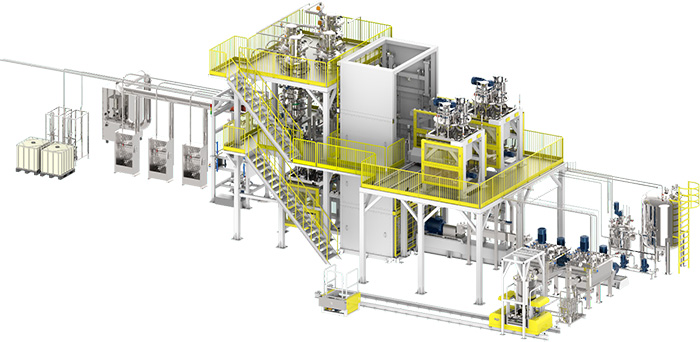

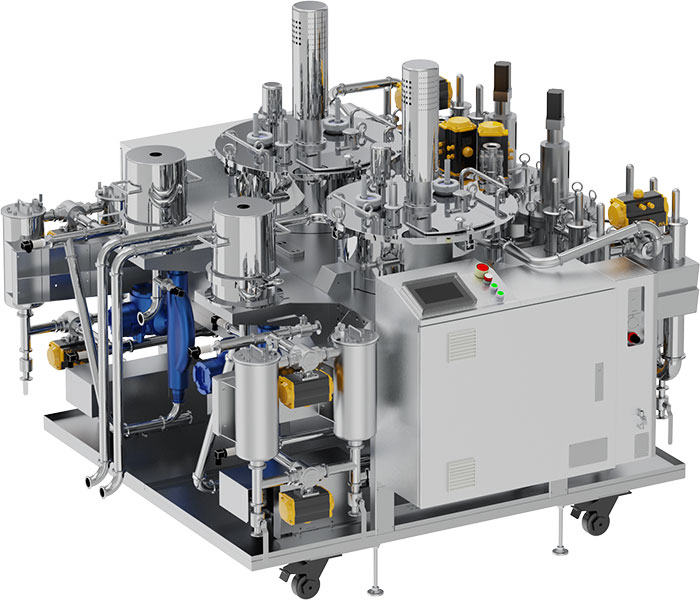

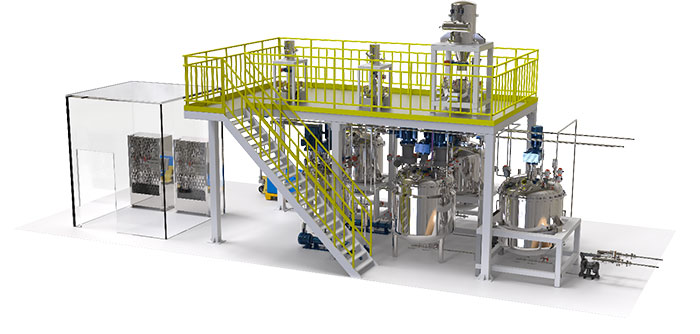

New Energy Powder Intelligent Slurry System SolutionOne click pulping; Twin screw high-speed dispersion; One stop pulping systemDetailed Introduction- Principle of the plan
- Advantages of the plan
? One click pulping
Reduce labor by 50%
System formula management+automatic feeding+online metering+automatic pulping+temperature closed-loop
? Twin screw high-speed dispersion
Improve pulping efficiency and quality
Double stage and double support+ceramicization
? One stop pulping system
10% reduction in one-time costs 15% reduction in operating costs
Centralized batching+batch mixing and transportation

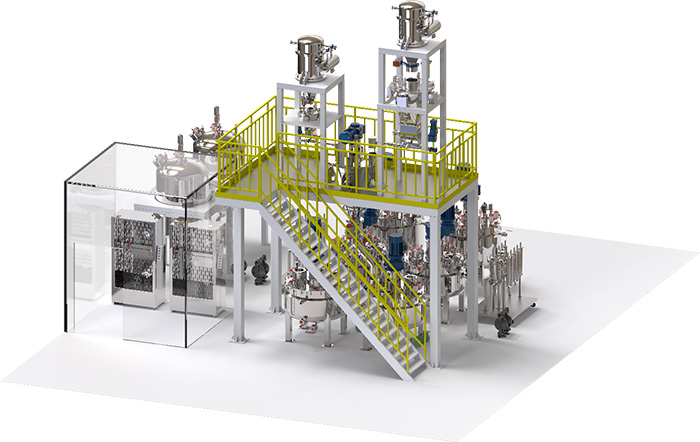

Conductive primer ingredient systemCeramic powder and auxiliary materials are fed into the measuring bin using a suction gun, and then enter the mixing tank from the measuring bin. The liquid is pumped into the mixing tank after measurement, and after being fully mixed, it is filtered through iron removal and pumped into the finished slurry tank for backup.Detailed Introduction
Insulation coating batching systemThe conductive agent and auxiliary materials are fed into the measuring bin using a suction gun. After precise measurement by the measuring bin, the material enters the mixing tank. The liquid is measured and pumped into the mixing tank. After sufficient mixing, it is filtered through iron removal and pumped into the finished slurry tank for backup.Detailed Introduction

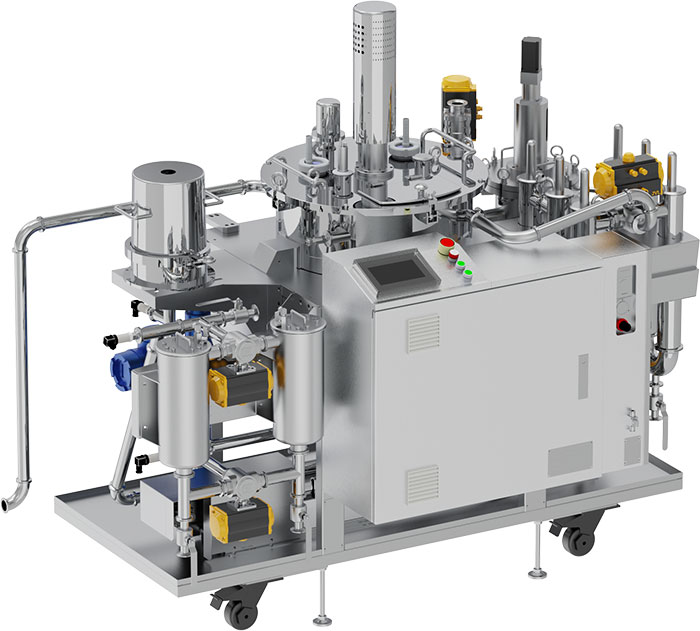

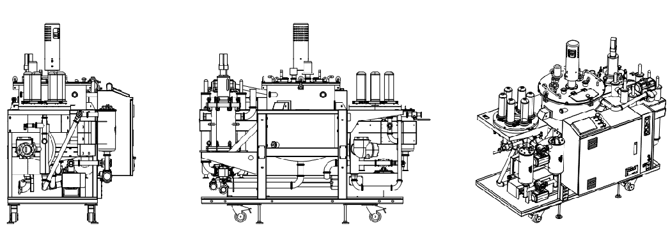

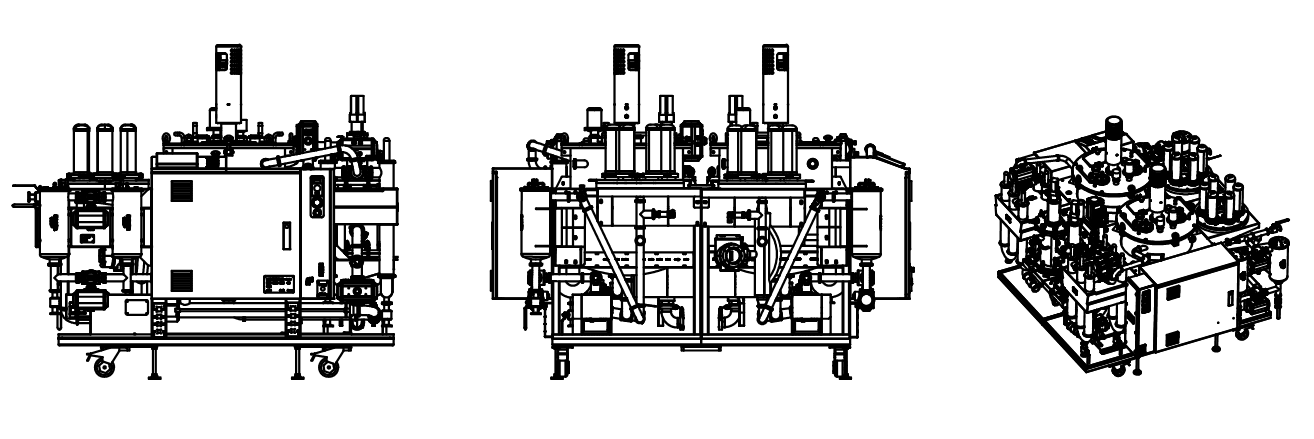

Dual Tank Coating Feeding SystemDetailed Introduction
Liquid level monitoring/automatic replenishment/online maintenance/fast disassembly and assembly
Automatic cycle cleaning
Feeding iron removal module (optional)
Buffer tank anti-settling
Buffer tank constant temperature (optional)
Buffer tank deaeration (optional)
filter
Multi-stage pressure/differential pressure detection
Pump speed/flow closed loop control (optional)
Pressure detection
Glue shunt module (optional)
Single Tank Coating Feeding SystemThe single-tank coating and feeding system is suitable for single-layer coating, with independent control cabinet, integrated iron remover, multi-stage filter and flowmeter, and the output slurry is of high quality.Detailed Introduction
Liquid level monitoring/automatic replenishment/online maintenance/fast disassembly and assembly
Automatic cycle cleaning
Feeding iron removal module (optional)
Buffer tank anti-settling
Buffer tank constant temperature (optional)
Buffer tank deaeration (optional)
filter
Multi-stage pressure/differential pressure detection
Pump speed/flow closed loop control (optional)
Pressure detection
Glue shunt module (optional)

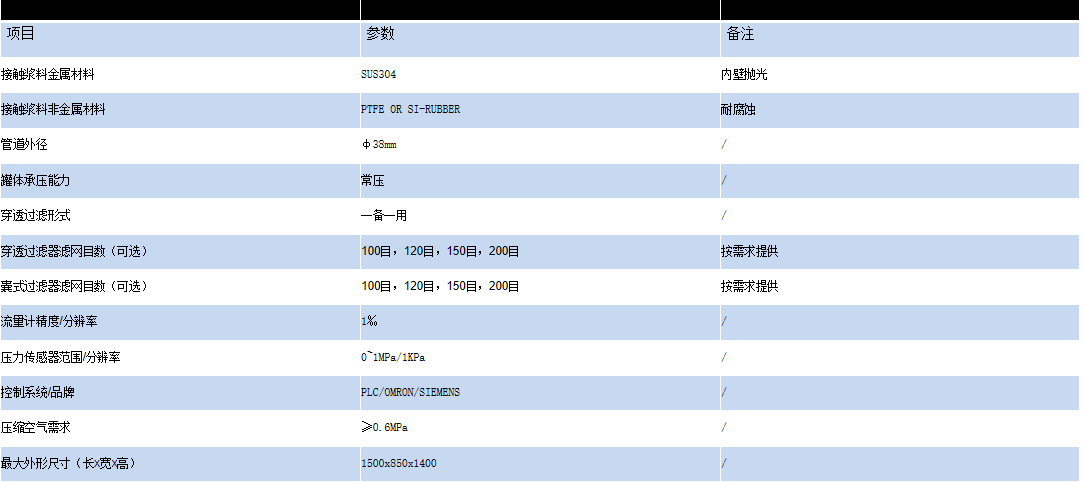

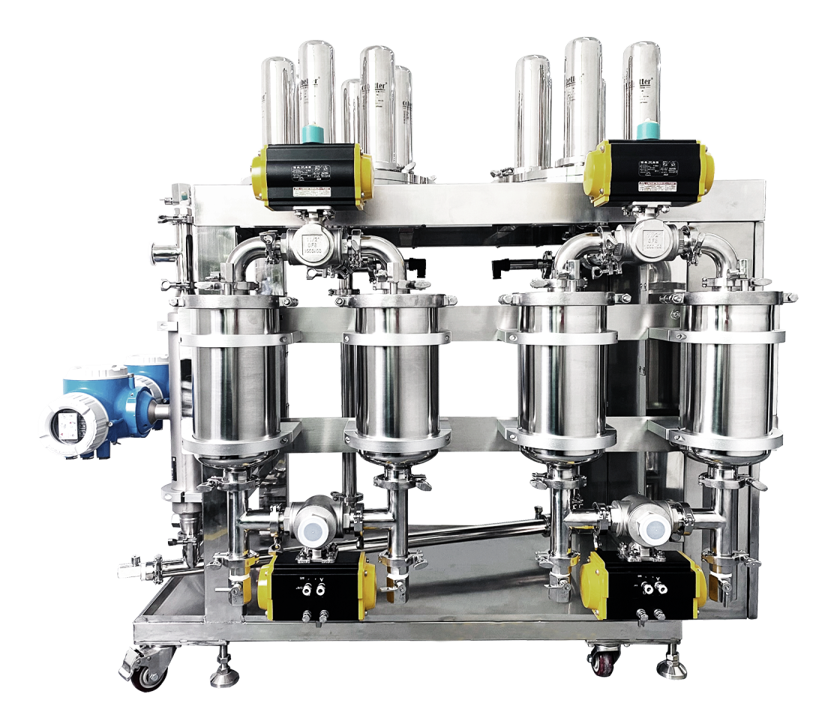

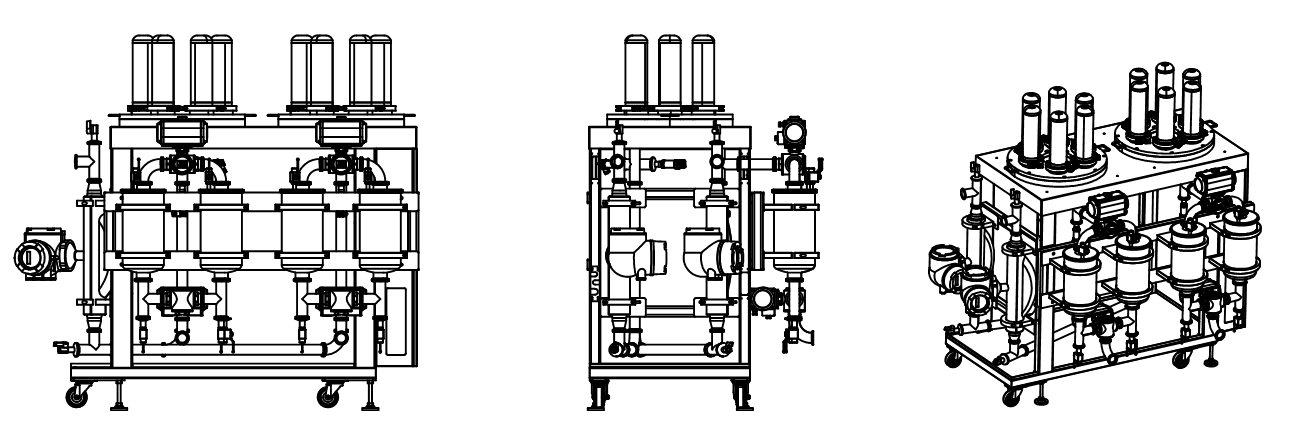

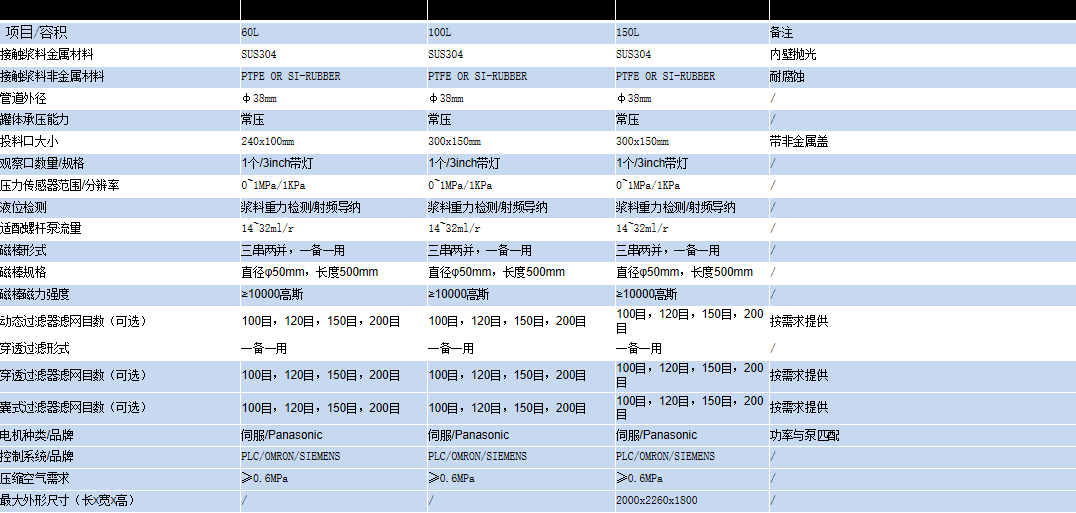

Slurry filter carSlurry filter carDetailed Introduction- Basic Parameters
The outer diameter of the pipe: φ38mm
The pressure capacity of the tank: normal pressure
Penetration filtration form: one for one use
Penetration filter mesh number (optional): 100 mesh, 120 mesh, 150 mesh, 200 mesh
Capsule filter mesh (optional): 100 mesh, 120 mesh, 150 mesh, 200 mesh
Flow meter accuracy/resolution: 1‰
- Features
The slurry is filtered through a penetrating metal mesh filter, and the bottom is in and out.
When it is blocked, the filter element can be removed to clean the slurry.
The capsule filter is used for secondary filtration.
The outlet is equipped with a pressure sensor to detect the current blockage of the filter element. The dual-channel design is used to improve production efficiency.
The equipment integrates primary and secondary filtration to improve the quality of the slurry.
Liquid level monitoring/automatic replenishment/online maintenance/fast disassembly and assembly
Automatic cycle cleaning
Feeding iron removal module (optional)
Buffer tank anti-settling
Buffer tank constant temperature (optional)
Buffer tank deaeration (optional)
filter
Multi-stage pressure/differential pressure detection
Pump speed/flow closed loop control (optional)
Pressure detection
Glue shunt module (optional)

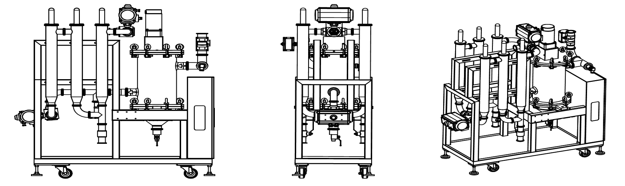

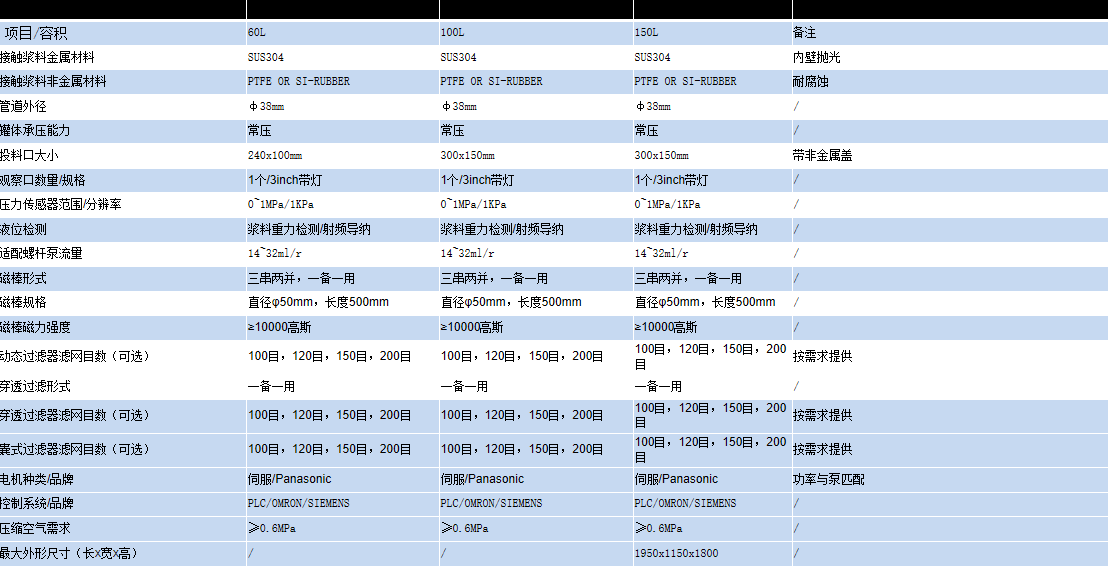

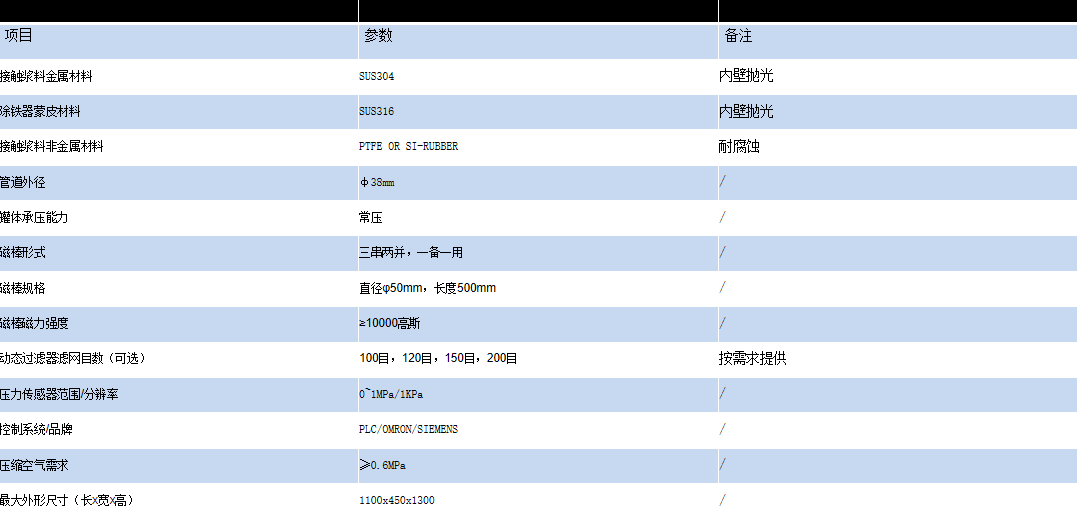

Dynamic Filtration and Iron Removal SystemThe dynamic filtration and iron removal system has the characteristics of large flow rate, high efficiency, convenient and fast cleaning and replacement, and intelligent selection and design of the filter screen, which can meet the filtering requirements of different precisions.Detailed Introduction- Basic Parameters
The outer diameter of the pipe: φ38mm
The pressure capacity of the tank: atmospheric pressure
Magnetic bar form: three strings and two parallels, one for backup and one for use
Magnet specifications: diameter φ50mm, length 500mm
Magnetic bar magnetic strength: ≥10000 Gauss
Dynamic filter mesh number (optional): 100 mesh, 120 mesh, 150 mesh, 200 mesh
- Features
Liquid level monitoring/automatic replenishment/online maintenance/fast disassembly and assembly
Automatic cycle cleaning
Feeding iron removal module (optional)
Buffer tank anti-settling
Buffer tank constant temperature (optional)
Buffer tank deaeration (optional)
filter
Multi-stage pressure/differential pressure detection
Pump speed/flow closed loop control (optional)
Pressure detection
Glue shunt module (optional)

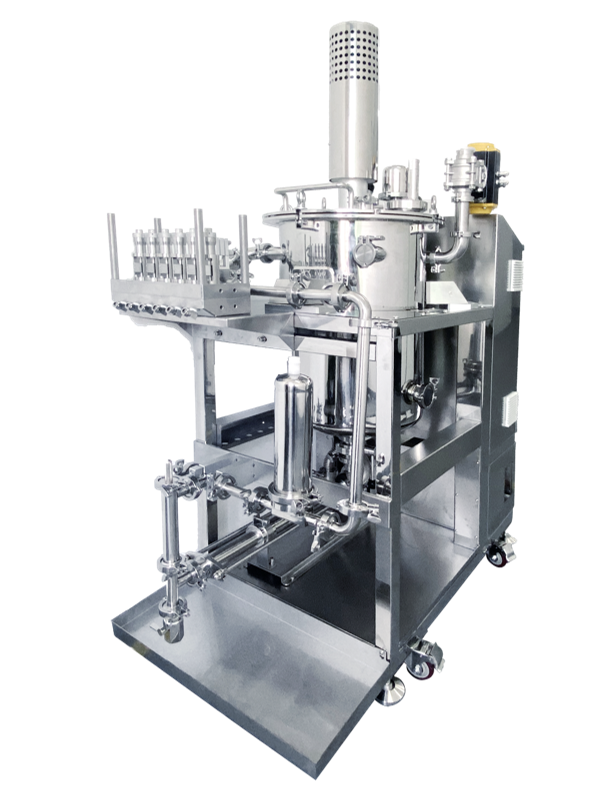

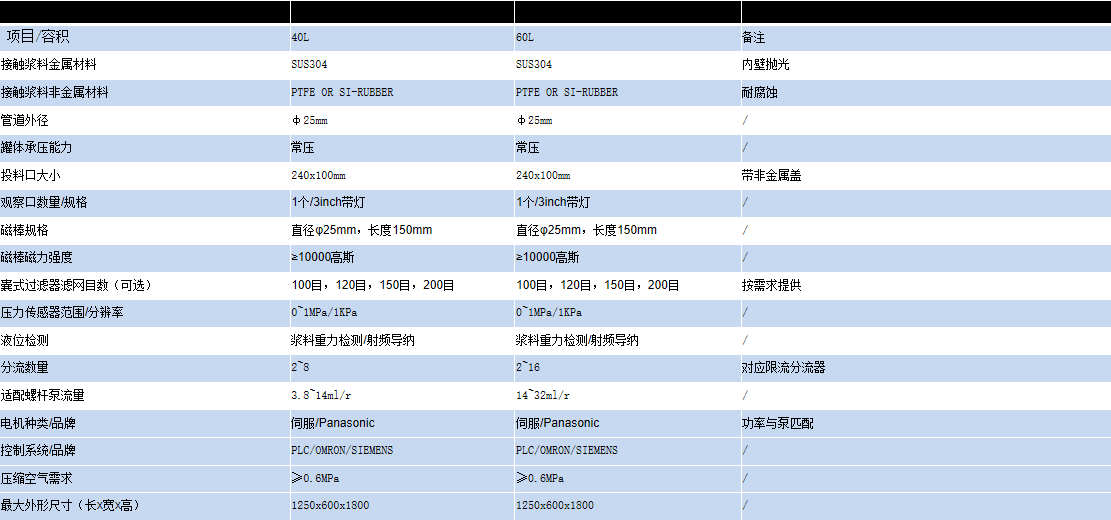

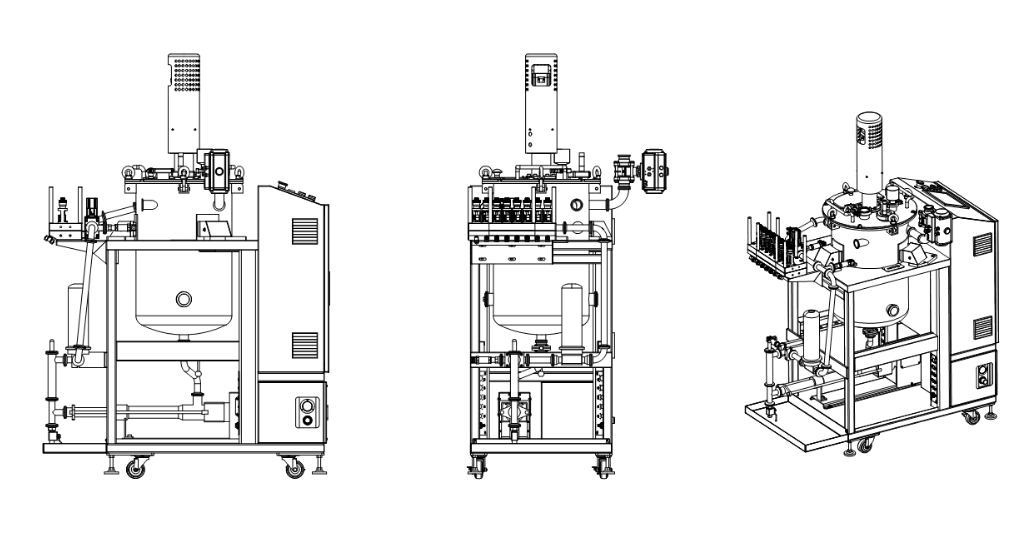

Single-tank glue feeding systemThe single-tank gluing and feeding system has an independent control cabinet, which has high functional integration and small volume. It also has the characteristics of constant pressure conveying. Each flow channel is independently adjusted and does not affect each other.Detailed Introduction- Basic Parameters
Tank capacity: 40L/60L/80L/100L/150L
Stirring speed: 0-30r/min
Screw pump output: 0.5-10L/min
Filtration method: secondary filtration
Pressure detection accuracy: 0.5KPa
Temperature detection accuracy: 0.1℃
- Features
It can be matched with a single-layer coating die or an independent coating system. Modular design, standardized tank body.
The conveying tank realizes the standardized design of 40L, 60L, 80L, 100L and 150L. Among them, 40L, 60L, 80L, 100L and 150L can be switched between tanks, and vacuum tanks are optional.
Integral mobile trolley design, easy to move and clean
The control system adopts connector type assembly, which is convenient for disassembly and assembly
Efficient iron removal, anti-settling, liquid level detection, defoaming, pressure feedback, flow consistency control
Liquid level monitoring/automatic replenishment/online maintenance/fast disassembly and assembly
Automatic cycle cleaning
Feeding iron removal module (optional)
Buffer tank anti-settling
Buffer tank constant temperature (optional)
Buffer tank deaeration (optional)
filter
Multi-stage pressure/differential pressure detection
Pump speed/flow closed loop control (optional)
Pressure detection
Glue shunt module (optional)
